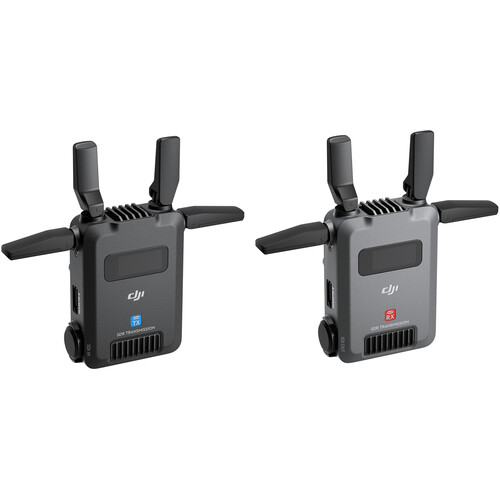

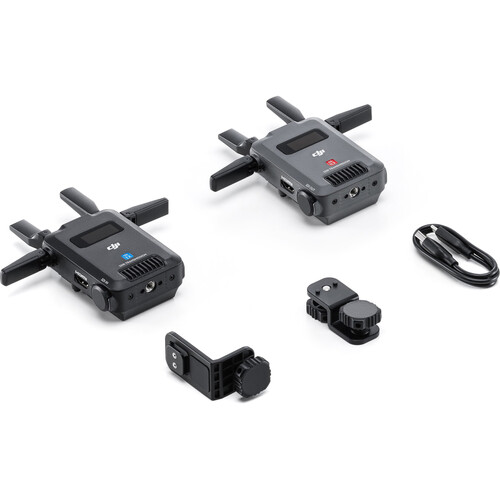

DJI SDR Transmission Combo

General Features:

• Transmission Distance: Up to 3 km (10,000 feet) in Control mode

• Latency: Approximately 35 ms (excluding camera and display latency)

• Frequency Range: 2.4000-2.4835 GHz and 5.725-5.850 GHz

• Video Resolution: Supports up to 1080p at 60fps

• Bitrate: Up to 20 Mbps in Control mode

• Power Consumption: ~8.2 W (transmitter), ~8.3 W (receiver)

• Operating Temperature: -10° to 40° C

Transmitter (Tx) Specifications:

• Weight: ~145 g (including antennas)

• Dimensions: 86.5×64×32 mm (excluding antennas)

• Ports:

  • Video Inputs: 1x SDI, 1x HDMI

  • Audio Input: 1x 3.5mm stereo jack

  • Other: 1x USB-C for firmware updates, 1x USB-C for power and gimbal communication

• Power Supply:

  • USB-C (9V, 2A, PD protocol)

  • NP-F battery (6.8-8.4V)

Receiver (Rx) Specifications:

• Weight: ~145 g (including antennas)

• Dimensions: 86.5×64×32 mm (excluding antennas)

• Ports:

  • Video Outputs: 1x SDI, 1x HDMI

  • Audio Output: 1x 3.5mm stereo jack

  • Other: 1x USB-C for firmware updates and video output, 1x USB-C for power

• Power Supply:

  • USB-C (9V, 2A, PD protocol)

  • NP-F battery (6.8-8.4V)

Additional Features:

• Monitoring Options:

  • Output to monitors via SDI/HDMI

  • Direct connection to smartphones/tablets via Wi-Fi

  • USB-C connection to mobile devices from the receiver

• Transmission Modes:

  • Control Mode: Stronger anti-interference, auto frequency hopping, supports two receivers

  • Broadcast Mode: Supports unlimited receivers with reduced range and bitrate

• Compatibility: Works with DJI RS 4 Pro, RS 4, and RS 3 Pro stabilizers for enhanced control
