General Features:
Transmission Distance:
Up to 400 meters (approximately 1300 feet) line-of-sight in Non-Broadcast mode.
Up to 200 meters (approximately 650 feet) line-of-sight in Broadcast mode.
Frequency Range: Operates within the 2.4 GHz and 5 GHz frequency bands.
Video Formats Supported: Supports 4K video transmission at 30fps, as well as 1080p (up to 60fps) and 720p formats.
Audio Transmission: Transmits embedded audio via HDMI.
Latency: Low latency of approximately 0.06 seconds.
Monitoring Options:
In Non-Broadcast mode, supports connection with up to two receivers and two mobile devices.
In Broadcast mode, supports up to four receivers.
Channel Selection: Features Smart Channel Scan to identify interference-free channels.
Power Supply: Supports multiple power options, including NP-F batteries, DC adapters (6V to 16V), and USB Type-C chargers (5V/2A).

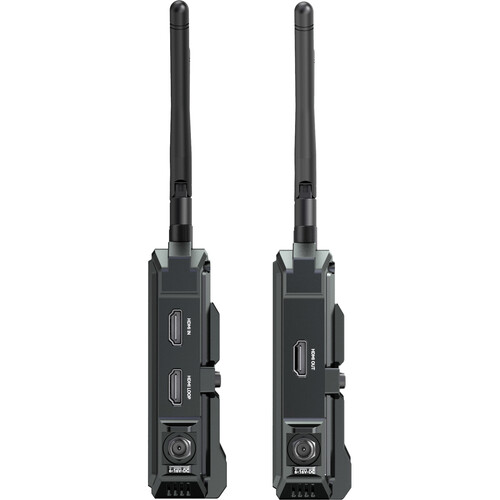

Interface In & Out:
Transmitter (Tx):
1x HDMI 1.4b input
1x HDMI 1.4b loop-out
1x DC input (2.0mm core socket)
1x USB-C (USB 2.0 OTG)
Antenna: SMA Male connectors
Receiver (Rx):
1x HDMI 1.4b output
1x DC input (2.0mm core socket)
1x USB-C (USB 2.0 OTG)
Antenna: SMA Male connectors
