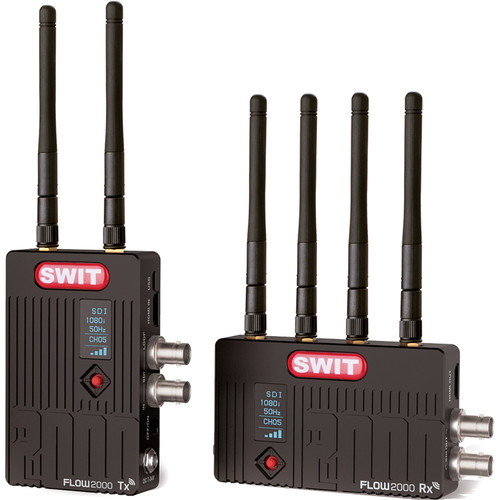

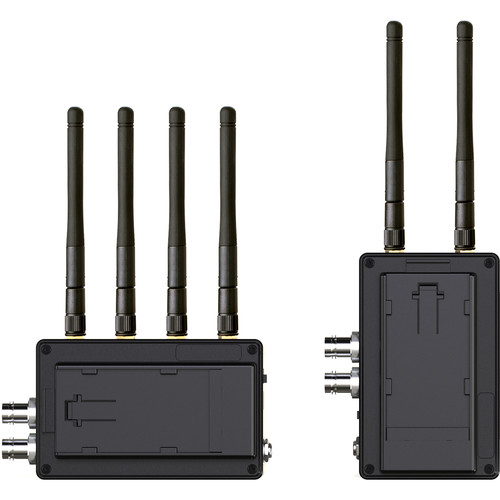

SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System

General Features:

• Transmission Distance: Up to 2000 feet (600 meters) line-of-sight.

• Frequency Range: Operates within the 5.1-5.9GHz bands with Dynamic Frequency Selection (DFS).

• Video Formats Supported: Supports various formats including 1080p (up to 60fps), 1080i, and 720p.

• Audio Transmission: Transmits 2-channel embedded audio via SDI and HDMI.

• Multicast Capability: Allows one transmitter to connect with up to four receivers simultaneously.

• Encryption: Features double encryption using a private transmission protocol and AES128 for security.

• Display: Equipped with an OLED screen showing signal format, wireless channel, and signal strength.

• Power Consumption: Both transmitter and receiver consume less than 8W and support NP-F DV batteries or 7-34V DC input.

Interface In & Out:

• Transmitter (Tx):

  • 1x 3G/HD-SDI input

  • 1x 3G/HD-SDI loop output

  • 1x HDMI 1.3 input

• Receiver (Rx):

  • 2x 3G/HD-SDI outputs

  • 1x HDMI 1.3 output
